Full-Band Scanner
70 MHz – 6 GHz panoramic detection with live spectrum display.

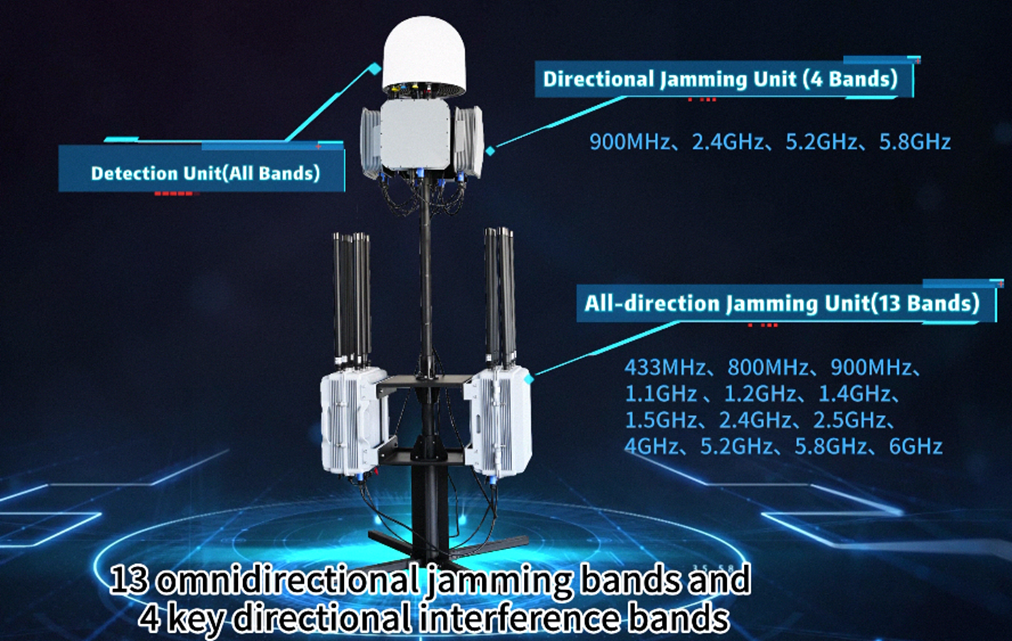

XDR-F16
Fixed tower defense — ≥10 km detection · 3 km counter · 70 MHz-6 GHz scan
±3° Direction-Finding
RMS accuracy for pinpointing pilot & drone.
3 km Intelligent Jam
13 omni + four-side directional shield modules.
Integrated C2 Software
Auto detect-&-jam, GIS map, logs, health-check.
Technical Specifications
| Detection | |
|---|---|
| Frequency Bands | 70 MHz – 6 GHz continuous scan |
| Distance | ≥ 10 km (LOS) |
| Angles | Horizontal 360° · Vertical –90° to +90° |
| Response Time | ≤ 10 s power-on to alert |
| Direction-Finding Accuracy | ±3° RMS (clear EM) |
| Tracking Display | |
| Telemetry | Distance, altitude, speed, lat/long (±1 m), model, SN, trajectory |
| Jamming | |
| Distance | ≥ 3 km (env. dependent) |
| Coverage | 360° omni + 4 directional modules |
| Response Time | ≤ 7 s from alert |
| System Hardware | |
| Scanner Head | ≤ 15 kg, Ø400 × H370 mm |
| Mast Size | Ø1000 × H2400 mm |
| Total Weight | ≤ 150 kg |
| Operating Temp | –40 °C – +60 °C |
Integrated Software Highlights
- Unattended/manual modes with auto-jam by location
- Blacklist/whitelist & unknown-signal filter
- HD GIS map overlays
- Log playback, stats, trajectory export
- GPS positioning & auto north calibration
- Health check: offline, standby, power-off
- FPV capture & blind-jam up to 1.5 km
Use Cases
- Critical infrastructure perimeter
- Airport/seaport airspace defense
- Military FOB or border mast
