Multi-Constellation
GPS, GLONASS, BeiDou, Galileo supported.

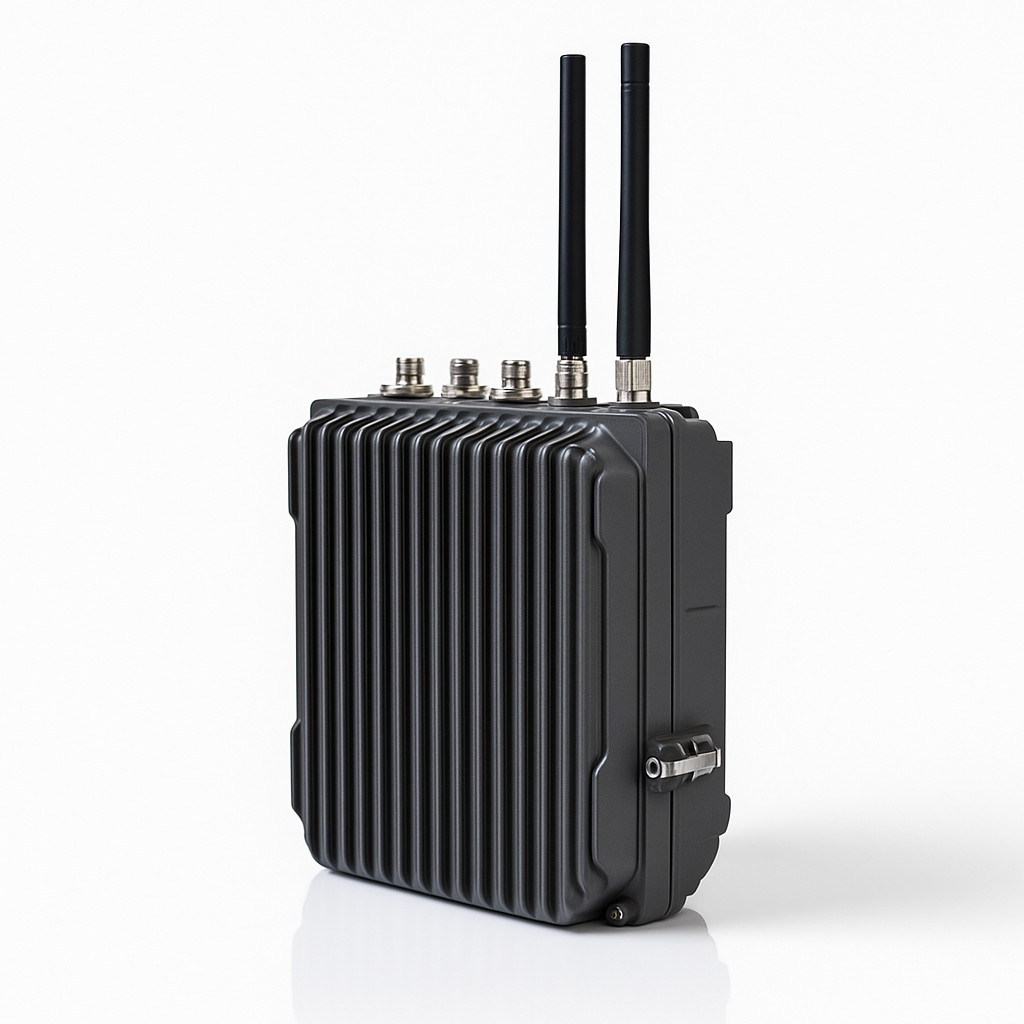

XDR-SP/5 Spoofer
GNSS deception module — ≥ 5 km lure · dual-band L1/L2/L5
5 km Lure
All-direction bubble to drift or capture UAVs.
Straight / Circle Modes
Force land or guide drone safely along path.
Rapid Response
< 10 s detect • < 20 s spoof engagement.
Technical Specifications
| Trigger Frequencies | 1 165–1 280 MHz (GPS-L2, GPS-L5, GLONASS-L2) 1 550–1 620 MHz (GPS-L1, GLONASS-L1, BeiDou-B1, Galileo-L1) |
|---|---|
| Lure Distance | ≥ 5 km line-of-sight |
| Airspace Scope | Omnidirectional deception |
| Unattended Ops | Yes — automatic cycle |
| Response Time | Detection < 10 s; spoof strike < 20 s |
| Hit Modes | Evacuation (RTH) • Forced landing • Circle hold |
| Operating Temp | −40 °C – +70 °C |
| Protection Level | IP66 |
Use Cases
- No-fly zones where jamming is restricted
- Urban areas requiring controlled landing
- Complement to F-Series towers for soft-kill
Interested in XDR-SP/5?
Talk to our team about GNSS spoofing where jamming is restricted.
